Downloads

  • MiMA MCC16 man up Turret Data Sheet please click to View.
×

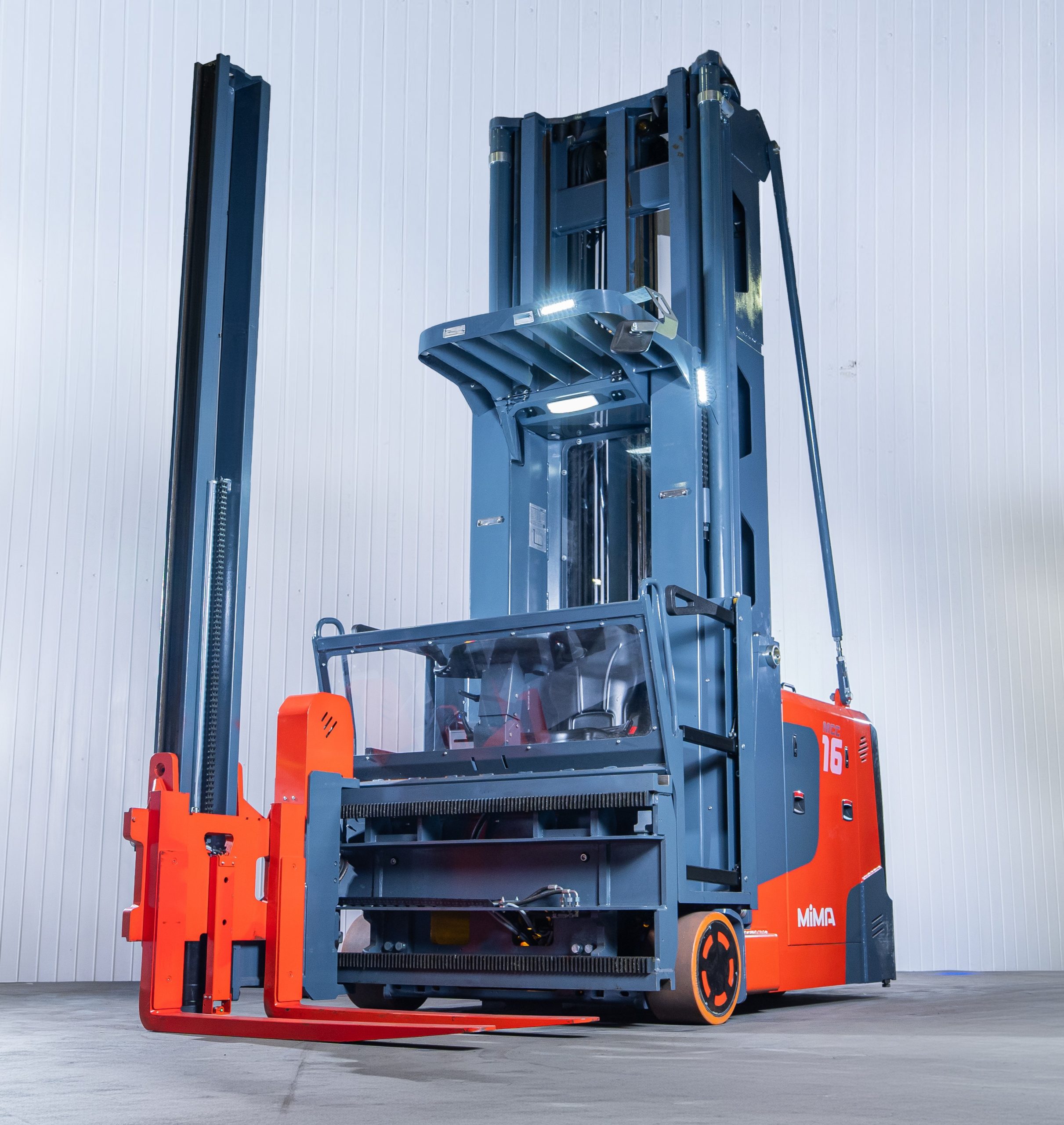

MiMA MCC16 VNA Man-up Turret Truck | 10m Lift |1600Kgs Capacity | Lithium

Best Prices in the UK

Specifications

  • Model: MiMA MCC16 VNA
  • Year of Manufacture: 2025
  • Fuel Type: Lithium electric
  • Side Shift: Yes
  • Capacity: 1600kgs
  • Lift Height: 10,000mm mm
  • Health & Safety: 6 Months Loler Certificate supplied.
  • Additional Info:
    • Large LED dashboard screen
    • Open cabin.
    • Electric steering.
    • Wide-view mast.
    • Ultra-low overhead guard.
    • LED headlight, turning light and warning light are energy-efficient.
    • Operator Presence Sensing (OPS) system.



    • Overall length – l1(mm) -Fork 90°)- 3715mm
    • Overall width – b1/b2(mm) – 1244/1502mm
    • Fork dimensions – l/e/s(mm) – 1200/125/50mm
    • Fork outside spread – b5(mm) –  260-725mm
    • Travelling speed – 10/10 Km/h
    • Battery voltage/nominal capacity – 80/560 – V/Ah
    • Turning Radius 2235mm.
    • Service weight (incl. battery) – 8350kg
    • Load center distance – 600mm
  • Truck Warranty: 2000 Hours or 2 Year Truck warranty
  • Battery Warranty: 5 Year onsite battery warranty.
1.6 Tonne High Level Dense Storage Man-up VNA Turret Truck
  • 1.9-meter narrow aisle operation: - MiMA MCC16 VNA man up turret truck has a minimum working aisle width of 1.65 metres significantly increases your warehouse capacity.
  • Operator can go up in the  Cabin for Stacking, Picking and Stock taking with ease.
  • 80V full AC maintenance-free motors for quicker, precise responsiveness with low current and energy consumption.
  • OPS system requires driver to grip acceleration handle and step on pedal to begin operation.
  • Forks rotate 180 degrees and shift laterally for easier stacking without turning in narrow aisle.
  • Large-diameter load-bearing wheels with full-wheel electromagnetic brakes for shorter braking distances.
  • Adjustable steering wheel tilt and seat provide operators with a comfortable driving position.
  • Equipped with large-diameter rubber tires, operators can easily perform loading and unloading tasks on semi-rough terrain, ensuring smooth driving regardless of the ground conditions.
  • 210-degree flexible steering: the vehicle’s mast can rotate 210 degrees, offering an ultra-small turning radius for flexible and comfortable operation, while maintaining the efficiency of traditional counterbalance forklifts.

  • 2 Year Warranty
  • 5 Year Battery Warranty
  • Best Part Exchange Prices
  • Service Contracts Available
  • Pre-Delivery Inspection
