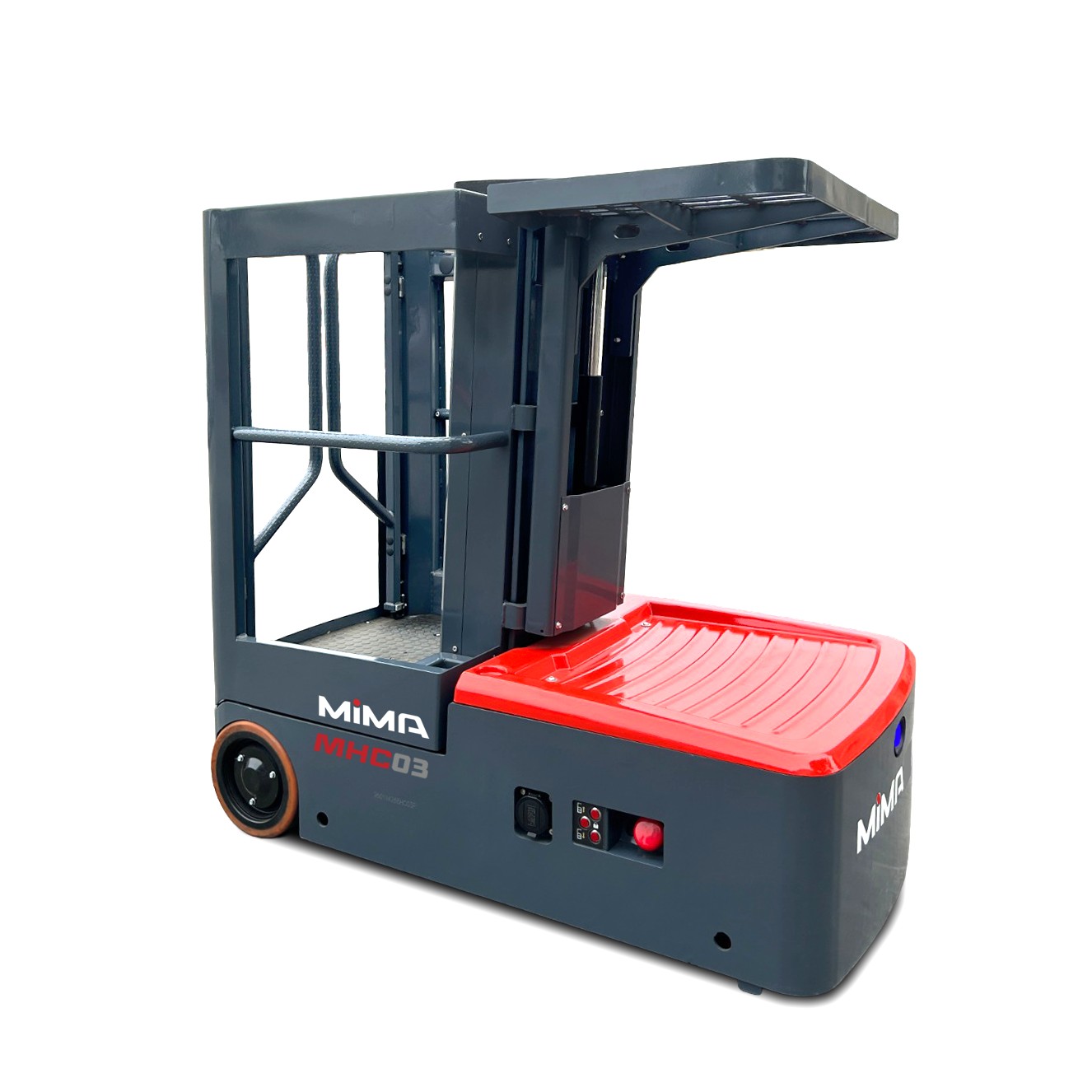

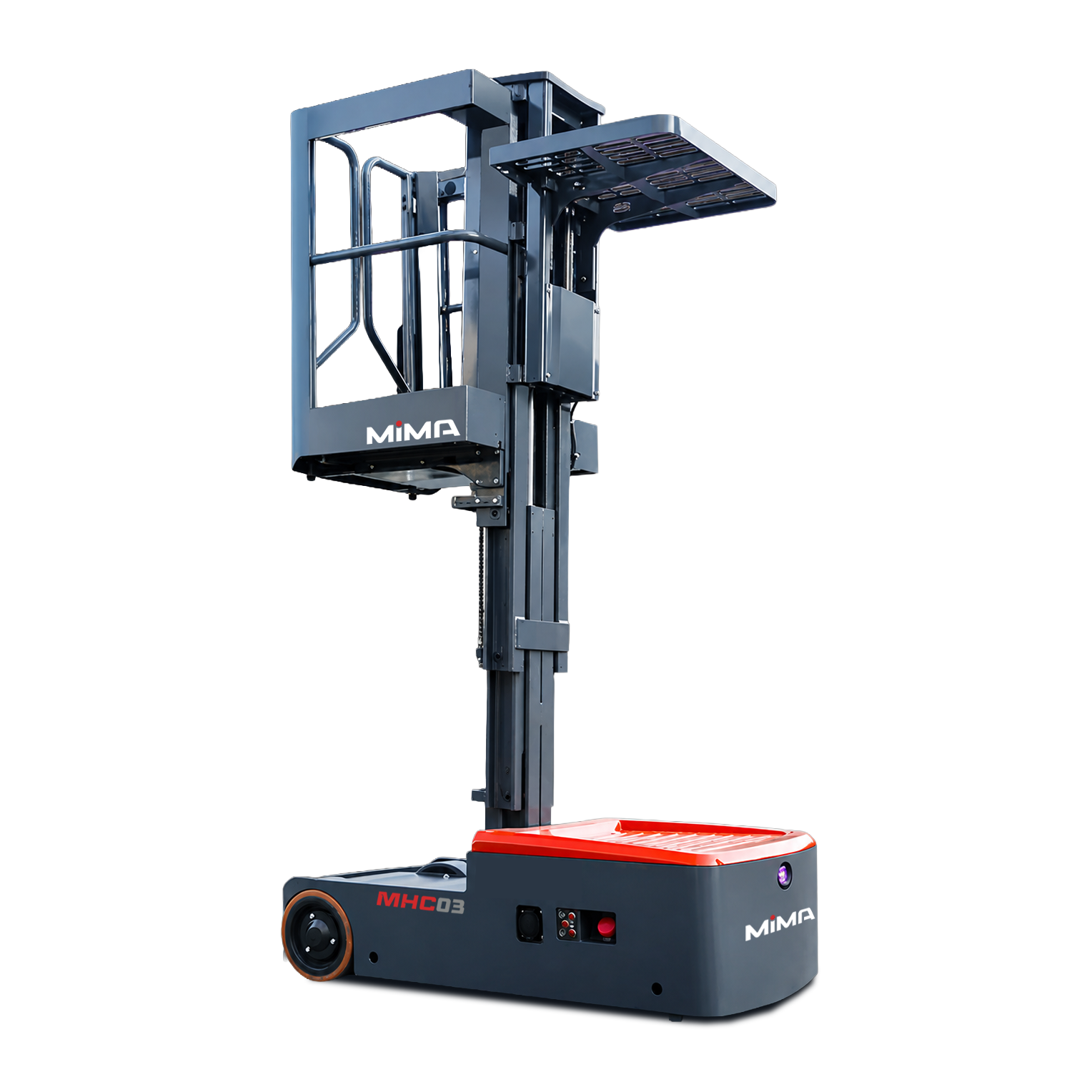

Low Level Compact Order Picker | Full Electric MiMA MHC03 | 3000mm Platform height | 136Kgs Capacity.

Purchase from £8,950 +VAT £10,740 inc VAT

£ 6,041.25 After Tax Relief

Hire Purchase + VAT / Week
Info

In stock

Email Enquiry

Key Features

    • Load capacity Cabin: 136Kg
    • Load capacity Fixed Platform: 110Kg
    • Tray Weight – 90kgs – electric lift and lower.
    • Working aisle width 1845mm.
    • Lifting height: 3000mm  / 5000mm Picking Height.
    • Battery: 24V-100AH
    • Maximum speed: 6.0/6.5 Km/h
    • Overall height: 1375mm
    • Overall width: 750mm
    • Overall length: 1440mm
    • Turning Radius: 1260mm
    • Working aisle width: 1845mm.
    • Ground Clearance: 35mm

Specifications

  • Model: MIMA MHC03
  • Year of Manufacture: 2026
  • Fuel Type: Lithium electric
  • Side Shift: No
  • Lift Height: 3000mmmm
  • Closed Mast Height: 1375mm
  • Health & Safety: 6 months loler supplied
  • Dimensions (L x W): 1440mm x 750mm
  • Gross Weight: 800 kgs
  • Additional Info:



    • Load capacity Cabin: 136Kg
    • Load capacity Fixed Platform: 110Kg
    • Tray Weight – 90kgs – electric lift and lower.
    • Working aisle width 1845mm.
    • Lifting height: 3000mm  / 5000mm Picking Height.
    • Battery: 24V-100AH
    • Maximum speed: 6.0/6.5 Km/h
    • Overall height: 1375mm
    • Overall width: 750mm
    • Overall length: 1440mm
    • Turning Radius: 1260mm
    • Working aisle width: 1845mm.
    • Ground Clearance: 35mm
  • Truck Warranty: 12 month truck warranty : Subject to status.
  • Battery Warranty: 12 months onsite battery warranty.
  • Battery Spec: 24V-100AH
Compact Low Lever | Order Picker
The Compact MiMA MHC03 order picker features a maximum picking height of 5,000 mm, an ultra-compact width of 750 mm, and a tight turning radius of 1,260 mm.
Key Performance Specifications
  • Max Picking Height: 5,000 mm (5 meters)
  • Overall Width: 750 mm (0.75 meters)
  • Turning Radius: 1,260 mm (1.26 meters)
  • Application: Low-level and mid-level order picking, stock replenishment, and facility maintenance
  • 1 Year Warranty
  • 12 Month Battery Warranty
